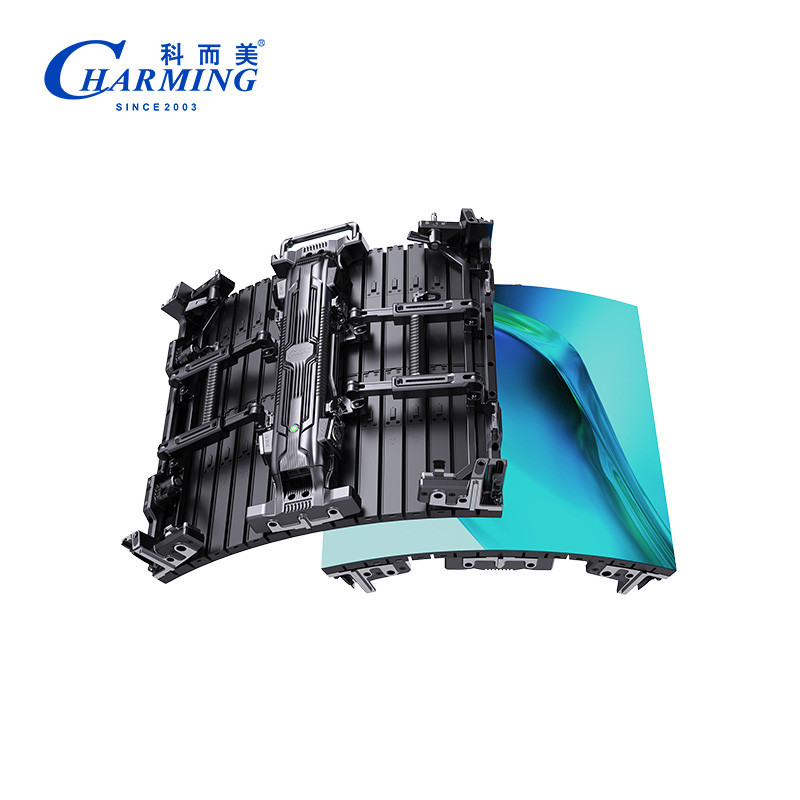

Refresh Frequency 7680Hz P2.6/2.98/3.91 CP Series outdoor LED Video
Wall With Power aviation socket
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm flexible corner screen weighs only 6.7 kg, 500*500mm box weight is only 6.6 kg,500*1000mm box weight is only
10.8 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve
a perfect arc.
5.Any shapes,the CP series flexible modelsupports splicing with
regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|
| Pixel Pitch | 2.6/2.98/3.91mm |
|---|
| Pixel Density | 262144/ 147456/65536 Dot/m² |
|---|
| LED Size | SMD1515/2020 |
|---|
| scan Type | 1/16,1/21,1/28,1/32Scan |
|---|
| GreyScale | 14-16 bit |
|---|
| Refresh Frequency | 7680Hz |
|---|
| Screen Brightness | 600-800 CD/㎡ |
|---|
| Best Viewing Distance | ≥4/3M |
|---|
| View Angle | ≥120° |
|---|
| MaxPower | 200w |
|---|
| Cabinet Weight | 7kg | 7kg | 11.4kg |
|---|
| IP Grade | IP42-43 |
|---|
| Operation temperature | -20~50/40℃ |
|---|
| Relative humidity | 10%~90%RH |
|---|
| Life Span | ≥50,000 Hours |
|---|
| Screen Working Voltage | AC 220V/(110V)±15 |
|---|
Details showing:
Q1.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest
viewing distance, the smaller the value, the clearer!
Q2. How to install and debug?
Answer: We will make drawings and build the fixed structure and
installation according to the drawings. Engineers will video
remotely debugging assistance and training you how to use!
Q3.What's the warranty?
Answer: 2 years warranty! We will prepare enough spare parts for
you, if there are broken parts, can be replaced in time without
affecting the use of!
Q4.What's the minimum quatity?
Answer: Sample is available! Quantity is negotiable!
Q5.How to make order?
Answer: Provide your E-mail address, detail address and phone
number, we will make payment link for you!
