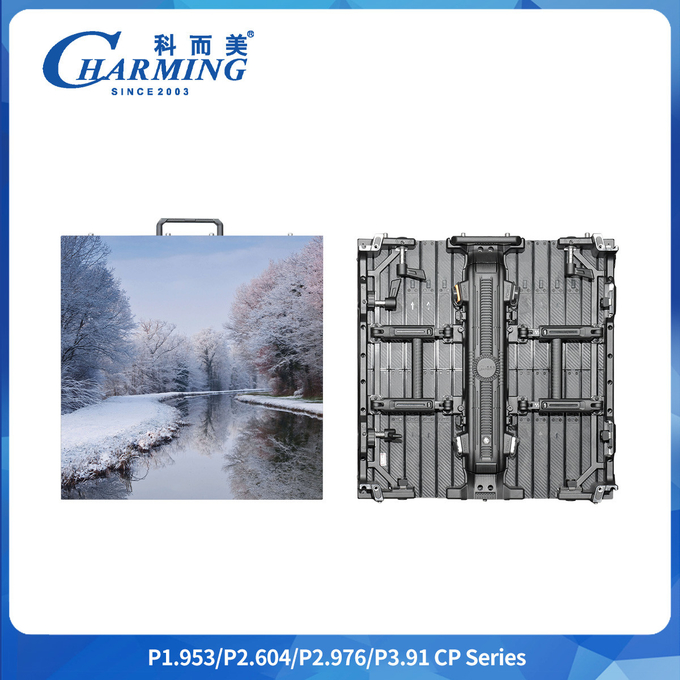

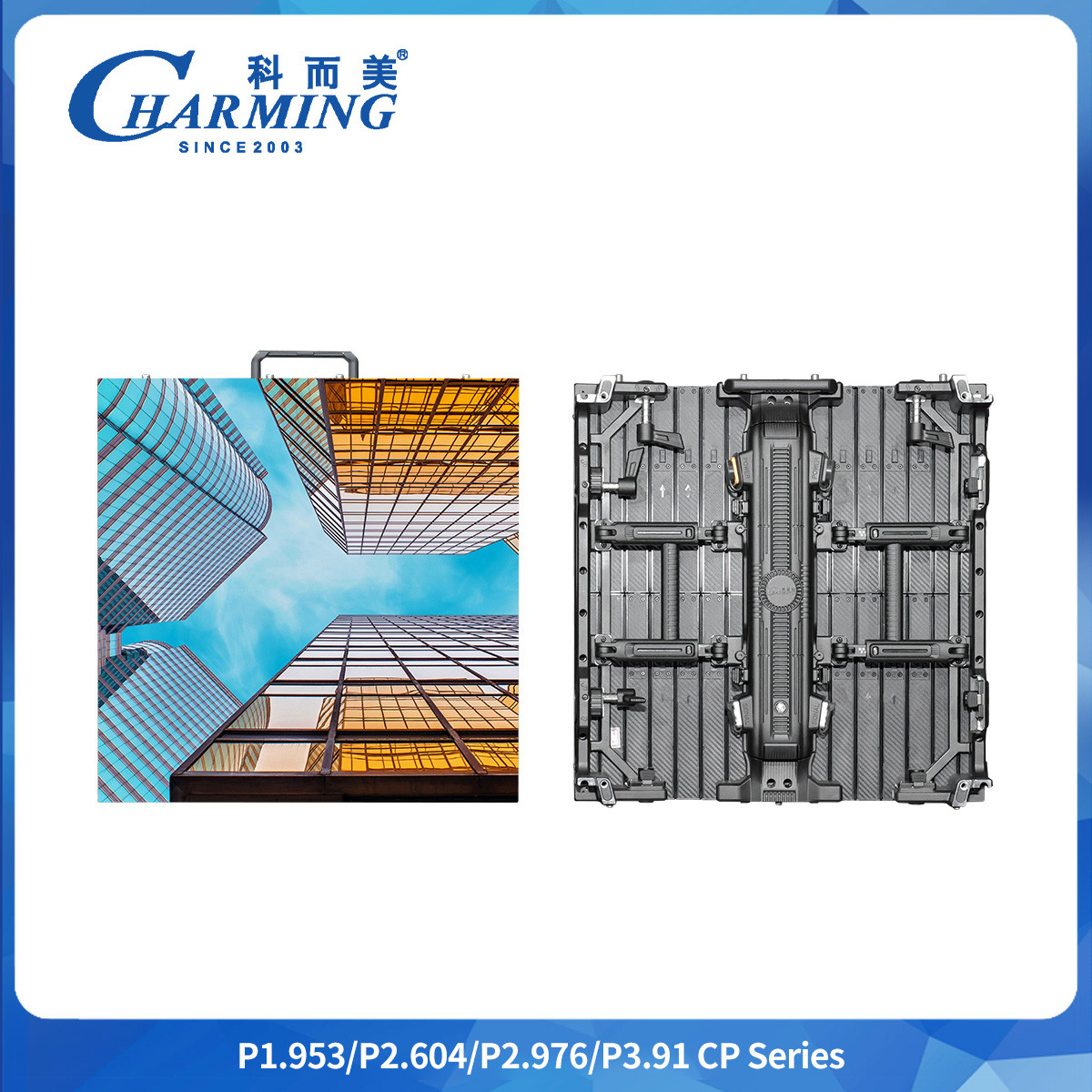

Anti-Oxidation P2.6/2.98/3.91 CP Series Indoor LED Video Wall With
Truss Connection Keyhole
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm flexible corner screen weighs only 6.7 kg, 500*500mm box weight is only 6.6 kg,500*1000mm box weight is only
10.8 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve
a perfect arc.
5.Any shapes,the CP series flexible modelsupports splicing with
regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|
| Pixel Pitch | 2.6/2.98/3.91mm |
|---|
| Pixel Density | 262144/ 147456 Dot/m |
|---|
| LED Size | SMD1515/2020 |
|---|
| scan Type | 1/32 Scan |
|---|
| GreyScale | 14-16 bit |
|---|
| Refresh Frequency | 7680Hz |
|---|
| Screen Brightness | ≥4500 CD/㎡ |
|---|
| Best Viewing Distance | ≥4M |
|---|
| View Angle | ≥120° |
|---|
| MaxPower | 200w |
|---|
| Cabinet Weight | 7kg | 7kg | 11.4kg |
|---|
| IP Grade | IP65 |
|---|
| Operation temperature | -20~50℃ |
|---|
| Relative humidity | 10%~90%RH |
|---|
| Life Span | 250,000 Hours |
|---|
| Screen Working Voltage | AC 220V/(110V)+15 |
|---|
Details showing:
led display
1. Die-casting aluminum , low temp-rise
2.Hard Connection, HUB card design, Without Any Cables
3. Magnetic front service or Back service with screw
4.High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray
6. High precision, seamless splicing, accurate to size of the
electrical and mechanical processing 0.1mm
7. Lightweight - weighs only 8.6kg, single person can be a single
portable, and extremely easy to install;
8. Compatible - the new structure designed to meet the lifting,
stacking requirements to meet the indoor and outdoor requirements;
