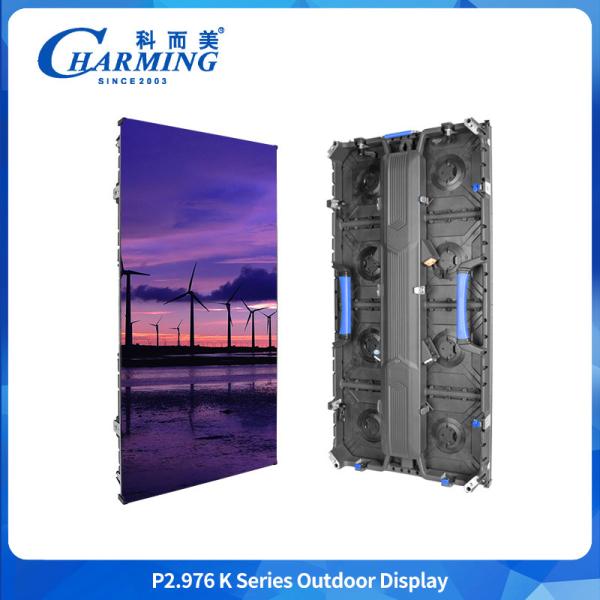

P2.98 Outdoor LED Display P2.98 Rental LED Screen LED Panels Event
Wedding Stage Show Conference LED Display
Product Detail Parts
1. Light Weight and Thin Thickness
K series P2.98 is ultra thin, thickness only 86 mm. And its weight
is light, 500*500mm cabinet only 8 kg, 500*1000mm cabinet only 14.8
kg.
2.Cabinet Main Material
The main material of cabinet is die casting aluminum. It is strong
rigidity, not easy to be deformation, more accurate splicing.

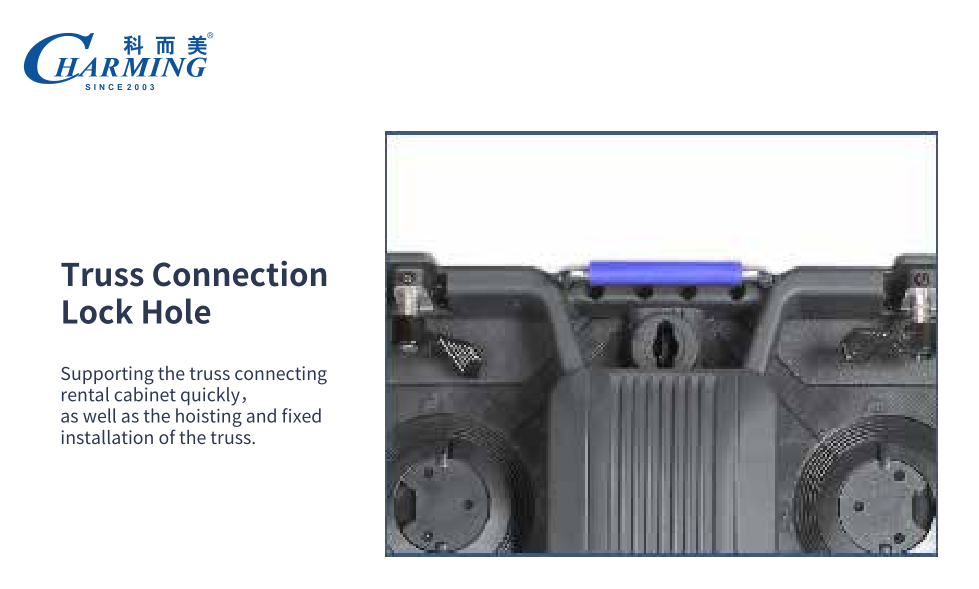

3. Precise Positioning Of Installation
The positioning pin can meet seamless splicing between the upper
and lower,left and right positions of the quick docking cabinet to
improve the installation efficiency.
4.Protection Corner
It can effectively protect the led lamp of the corner led modules
from colliding and falling of during transportation or repeated
disassembly when for rental.
5.Led Module Protection
it can keep a gap between the bottom LED modules and ground to
avoid collided when transporting.
A wide viewing angle can bring a better visual experience and
flexibility of use

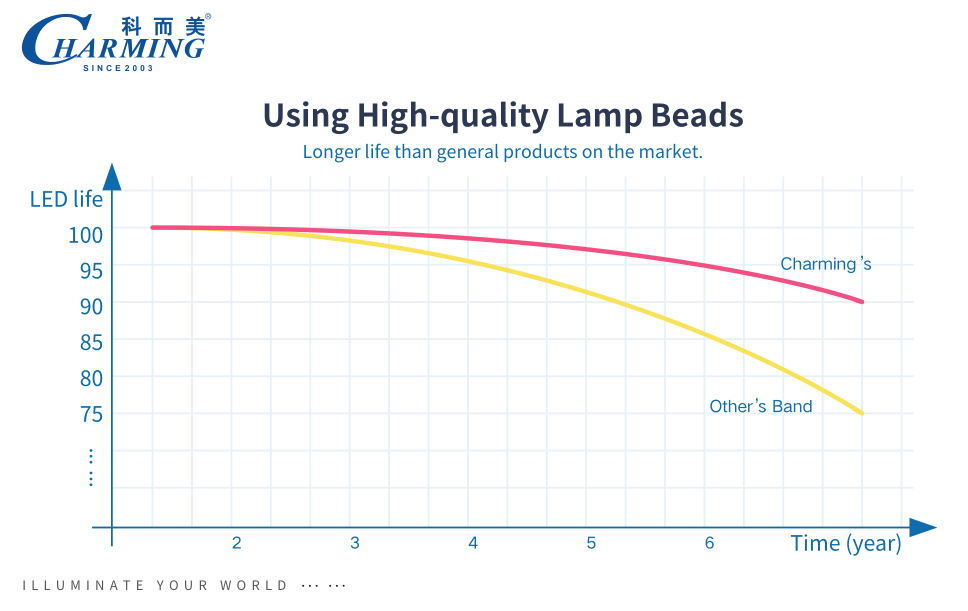

Use lamp beads with longer lifespan than those on the market to
ensure longer product life and quality assurance
Product parameters
| Type Number | RK297W-H | RK297WX-H |
| Dimension(MM) | 500 x 500x 86MM | 500x1000x86MM |
| Max.Power(W) | 200W | 400W |
| Cabinet Weight(KG) | 8KG | 14.8KG |
| Brightness(CD/m) | ≥4500 CD/㎡ | ≥4500 CD/㎡ |
| LED Standard | SMD1415 | SMD1415 |
| Viewing Angle | 140° | 140° |
| Protection Level | IP65 | IP65 |
| Refresh Rate(Hz) | 3840Hz | 3840Hz |
| Pixel Pitch(MM) | 2.98MM | 2.98MM |
| Scan Mode | 1/21 Scan | 1/21 Scan |
| Pixel Density(Dot/m) | 112896 Dot/㎡ | 112896 Dot/㎡ |
| Cabinet Material | Aluminum Alloy | Aluminum Alloy |
| Maintenance Method | Back Maintenance | Back Maintenance |
| Grey Level | 16 Bit | 16 Bit |
| Life Span | ≥100000 Hours | ≥100000 Hours |
| Working Voltage | AC 110V/220V,50/60HZ | AC 110V/220V,50/60HZ |
| Working Humidity | 10%-90%RH | 10%-90%RH |
Company Profile
CharmingLed has 21 years of experience in the field of LED screens,
and its products cover rental commercial displays, building
lighting and entertainment hotels. The products sell well in more
than 150 countries and regions around the world.
Why do so many people choose CharmingLed?
1. Product Quality
We can provide customers a comprehensive solution delivery of
series-related products.
We can provide customers high quality products which allow them to
scream.
We can provide customers one year free warranty, and support
renewals extended.
2. Best Service
We can provide custom-made 24 hours online service.
We can provide customers the free installation guidance and
technical support.
We are willing to provide any countries and regions in the world
with products and technical support at present, our product has
covered more than 100 countried and regions.
Packing Method
Customer Feedback
Our Services
A: 24 Hours After sales support,professional support,manual book,
and remote control if customer need it,not only sell display to
you,but more supports.
B: BIS, CE,ROHS,FCC certification factory.
C: Sure Dispaly from factory is 100% test done and not any quality
problems, we will responsibile it if have any quality problems.
D: We offer 2 years warranty to our product.
E: Customized design is available.
F: Special discount are offered based on order quantity. Welcome to
contact us.
