Outdoor Rental Events Stage Led Screen 8K Big Concert Show High
Performance Led Wall
Product Descriptions

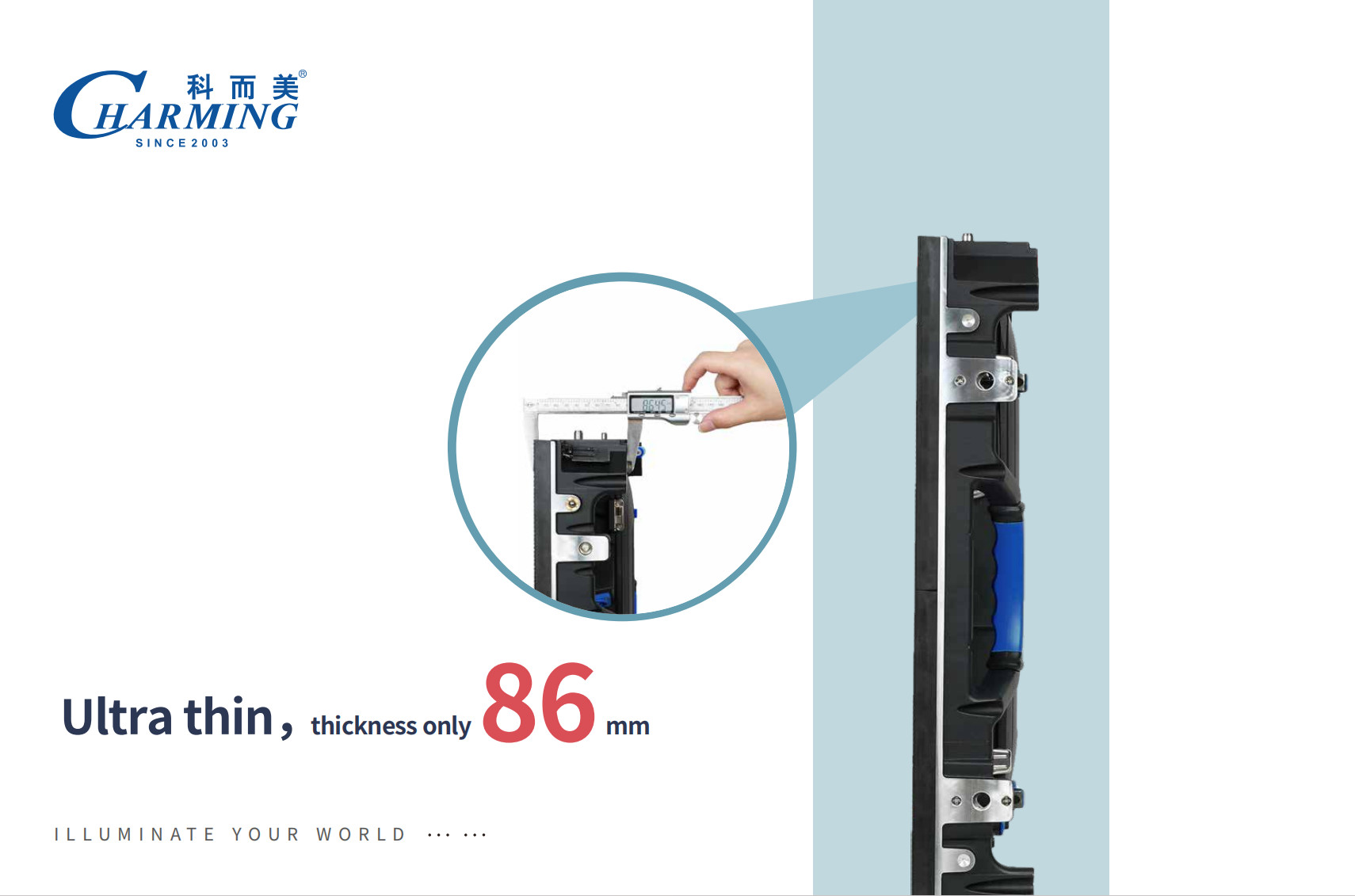

1.Convenient installation, thickness only 86 mm
1.High Refresh, high contrast, high gray scale
3.Arc Lock and Anti-collision Corner design
Technical Specifications
| P2.98 | P2.98 | P2.98P2.98 | |
| Dimension(MM) | 500x 500x 86MM | 500x1000x86MM | 500 x 500x 86MM | 500x1000x86MM |
| Max.Power(W) | 200W | 400W | 200W | 400W |
| Cabinet Weight(KG) | 8KG | 14.5KG | 8KG | 14.8KG |
| Brightness(CD/m) | ≥1200CD/㎡ | ≥4500 CD/㎡ |
| LED Standard | SMD1515 | SMD1515 |
| Viewing Angle | 120° | 140° |
| Protection Level | P42 | IP65 |
| Refresh Rate(Hz) | 7680HZ |
| Scan Mode | 1/16 Scan |
| Cabinet Material | Aluminum Alloy |
| Maintenance Method | Back Maintenance |
| Grey Level | 16 Bit |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working Voltage | AC 110V/220V,50/60HZ |
Details Descriptions
Effectively protecting the led lamp
of the corner led modules from
colliding and falling off during
transportation or repeated
disassembly when for rental.
Grey level is the decisive factor for displaying the colors.
the more delicate the picture.andThe higher the Grey level,
the richer the displayed colors
Seamless splicing between the
upper and lower,left and right
positions of the quick docking cabinet
to improve the installation efficiency.
Case display
--- Outdoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events
