Full-color P2.6 LED outdoor screen for stages, hotels, etc.
P2.6 Outside Led Screen Video Wall For Rental&Commercial Event
Product Advantage

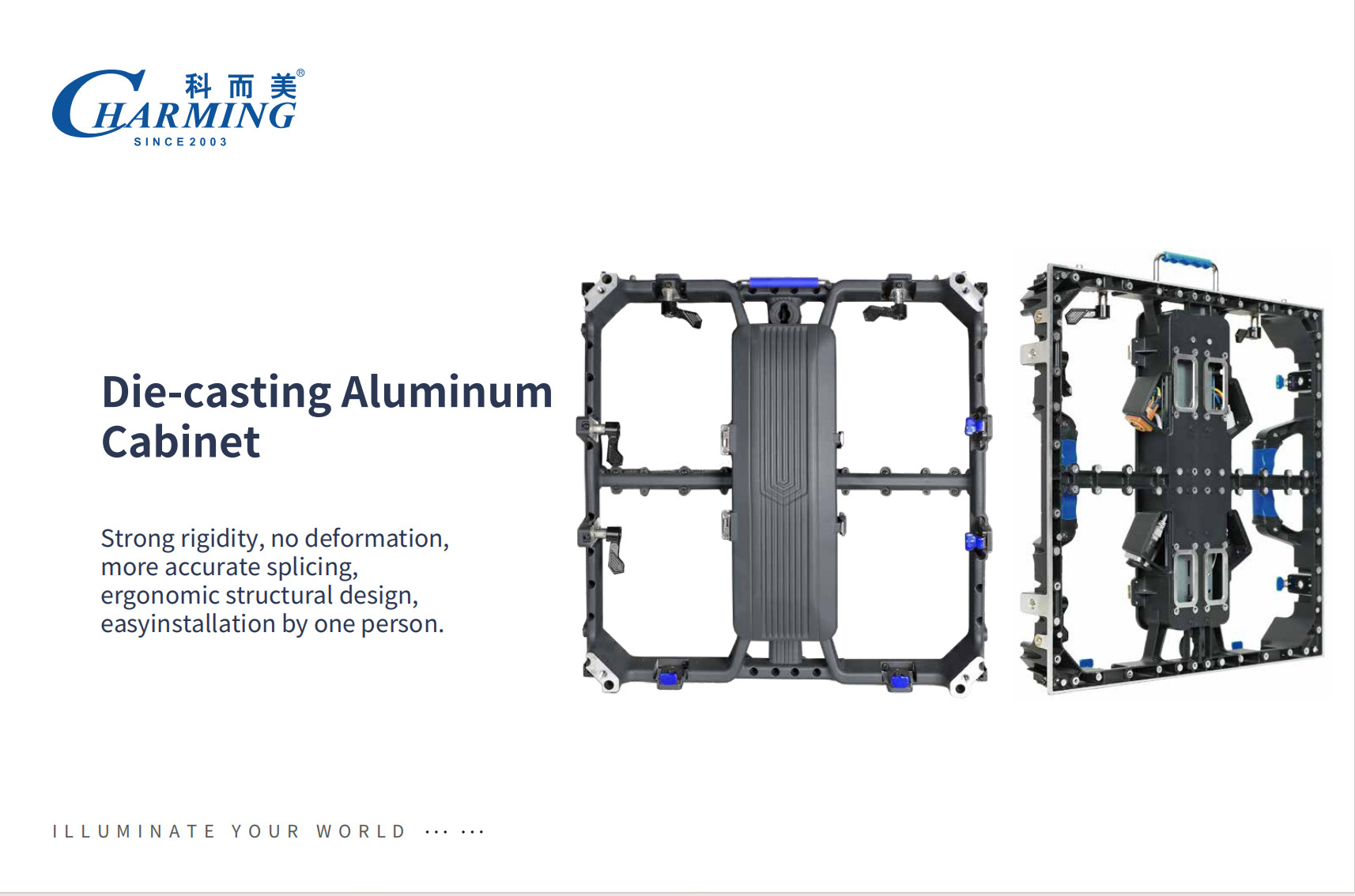

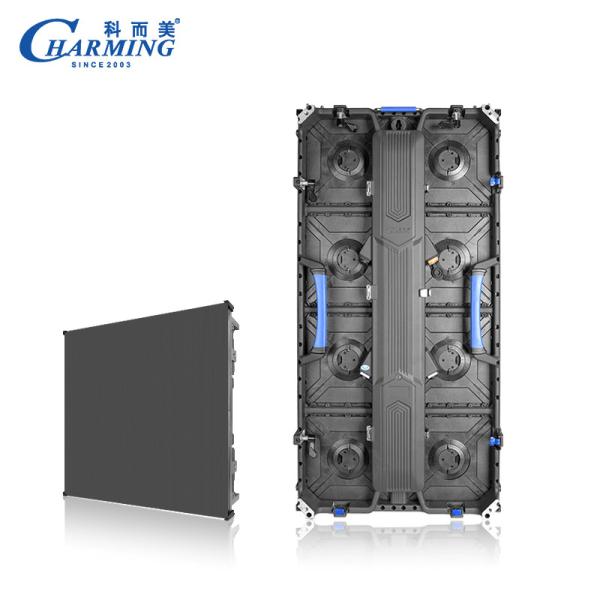

1. Light Weight
K series P2.6,its weight is light, 500*500*86mm cabinet only 8 kg,
500*1000*86mm cabinet only 14.8 kg.
2.Ultra Thin
The cabinet thickness only 86mm
3. Precise Positioning Of Installation
Seamless splicing between the upper and lower,left and right
positions of the quick docking cabinet to improve the installation
efficiency.
4.Protection Corner
Effectively protecting the led lamp of the corner led modules from
colliding and falling off during transportation or repeated
disassembly when for rental.
5.Led Module Protection
keep a gap between the bottom LED modules and ground to avoid
collided when transporting.
Module Handle
It is easier to remove the module when you want to replace the
module and maintain the cabinet.
Alternative Function
1. Anti-collision Corner
It can effectively prevent modules and lamp beads from being
knocked or impacted during transportation and carrying.
2. Curved Lock Design
The cabinet with curved lock can be bent by plus or minus 15
degrees, and can be used as curved screen and circular screen.
Important Parameters
Type Number | RK26W-H | RK26WX-H |
|---|
Dimension(MM) | 500x500x86MM | 500x1000x86MM |
|---|
Max Power(W) | 200W | 400W |
|---|
Cabinet Weight(KG) | 8KG | 14.8KG |
|---|
Refresh Rate(Hz) | 3840Hz / 7680Hz |
|---|
Pixel Pitch(MM) | 2.6MM |
|---|
Led Standard | SMD1515 |
|---|
Pixel Density(Dot/M²) | 65536 Dot/M² |
|---|
Brightness(CD/M²) | ≥4500CD/M² |
|---|
IP rate | 65 |
|---|
Viewing Angle | 140° |
|---|
Cabinet Material | Aluminum Alloy |
|---|
Grey Level | 16 Bit |
|---|
Maintenance | Back Maintenance |
|---|
Working Temperature | -20~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
Why choose us
1. Product Quality
We can provide customers a comprehensive solution delivery of
series-related products.
We can provide customers high quality products which allow them to
scream.
We can provide customers one year free warranty, and support
renewals extended.
2. Best Service
We can provide custom-made 24 hours online service.
We can provide customers the free installation guidance and
technical support.
We are willing to provide any countries and regions in the world
with products and technical support at present, our product has
covered more than 100 countried and regions.
3. Reliable Partner
Our company was built in 2003 with 20 years history.
Our company is experienced in exporting and has exported over 150
countries.
Our company has own factory, R&D department, 24 online service
group.
Over the years, we have been focusing on LED application technology
innovation and services. The company integrates R&D,
production, marketing and comprehensive services, and its products
sell well in more than 150 countries and regions around the world.
FAQ
Q : Are you manufacturer?
A : Yes, we are manufacturers.We can provide OEM / ODM customized
service according to our customers’ various application and
demands.
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production; more
than 72 hours tested bofore shipment.
Q : What is the minimum order(MOQ)?
A : We accept one unit for standard products. If require OEM, will
see detailed requirements and confirm MOQ to you from our sales
department.
Q : Can we get the free sample?
A : Sorry, generally we would not provide the free sample. If the
customer confirm the specification and price, they can order the
sample firstly for the testing and evaluation. After place the
quantity order, we can return the sample cost to the customer.
Q : what services can we provide?
A : Accepted Delivery Terms: CIF,EXW,CIF,CIP, DDP, DDU...
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Q : What's Your Products Warranty?
A : Our warranty is 3 years.
Q : How long it will take for delivery?
A : For production lead time around 7-10 days depend on
requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time
would around 3-7 working days. For some remote place, delivery time
maybe a little bit longer.
Q : How to repair the device if any problem ?
A : We will provide technical support online to solve problem; If
for the hardware problem , we could send the parts or components
and teach customer to fit if they have technician or can also send
back to us to fix it.
