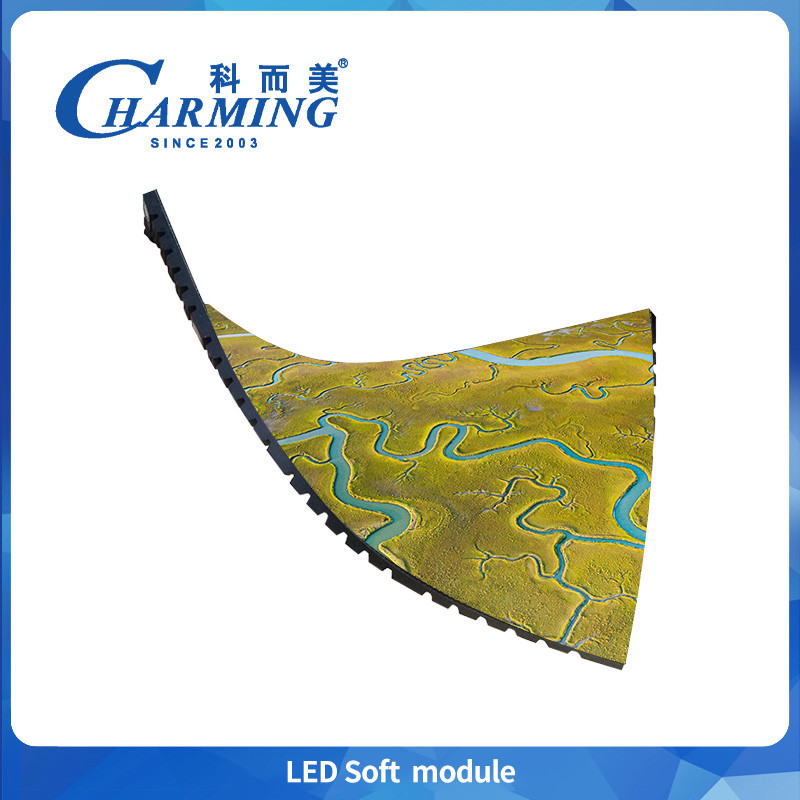

Led Soft Module
The LED soft module series is ideal for artistic applications like
cylindrical screens, spiral screens, wave screens, and ribbon
screens.
Detail
- Enhanced assembly wiring provides more reliable signal
transmission.
Minimum bending angle: 135 degrees
Eighteen magnets are paired with a single board, each with a
magnetic strength up to 2000GS, addressing the issues of debonding
and warping commonly found in ordinary soft modules.
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) | 320*160*7.5MM | 320*160*7.5MM | 320*160*7.5MM | 240*120*7.5MM | 320*160*7.5MM | 256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard | SMD1515 | SMD1515 | SMD 2020 | SMD 2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan | 1/20Scan | 1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) | 288906 Dot/m² | 250000 Dot/m² | 160000Dot/m² | 111111Dot/m² | 105625 Dot/m² | 62500Dot/m² |
Refresh Rate(Hz) | 7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
Brightness(CD/ m²) | ＞800 | >700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
Protection Level | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
Grey Level | 14-16 bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
Working Temperature | -20～50℃ | -20～50℃ | -20~50°C | -20~50°C | -20~50°C | -20~50°C |
Working Humidity | 10%～65%RH | 10%～65%RH | 10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
Life Span | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
Working Voltage | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Company introduction
Charming Co., Ltd. has consistently prioritized technical
innovation and delivering global entertainment lighting and LED
solutions. In 2003, it launched the world's first LED display for
entertainment purposes, continuously setting industry trends. It
has emerged as the leading brand for customer satisfaction in
China's entertainment lighting LED market. The company holds nearly
100 patents and has earned ISO9001, CE, CCC, CB, ROHS, and SASO
certifications. Guided by its corporate philosophy of 'Charming
Achieves Beauty,' it operates an international-standard fully
automated LED display production line in a 10,000-square-meter
facility. For over 22 years, it has provided high-quality products
and services to customers in more than 150 countries and regions.
What we offer to customer?
1.Can I have a sample order for led screen?
We welcome sample orders to test and verify the quality of both LED
modules and LED screens.
2. Can I purchase samples by placing orders?
Please feel free to contact us.
3.What is your typical delivery timeframe?
The shipping time depends on the order quantity and the season.
Typically, orders of smaller quantities are shipped within 7-15
days, while larger quantities may take approximately 30 days.
4.Can we make any size of led display?
Nope, according the led module size and cabient size
5.What are your payment terms?
T/T, PayPal, Alipay, or other payment methods are acceptable. This
can be negotiated.
Warranty
We offer a two-year warranty on all our displays, modules, and
parts, which includes free replacement or repair of any defective
items. Additionally, we provide lifetime maintenance, charging only
for raw materials. We also offer free technology training on LED
screen operation and maintenance at our factory, along with an
operation manual, software, test report, and CAD drawings for
assembly. Expert advice is available as well.
Certification and Documents
1.We offer the operation manual, software, test report, and other
related materials.
2. We offer a variety of certifications, including CE and UL.
