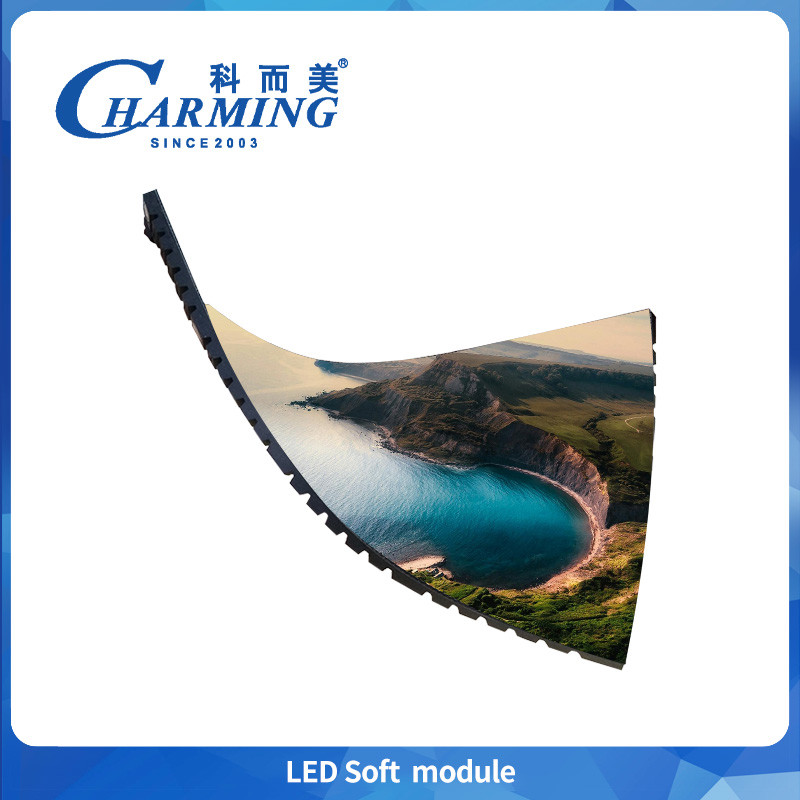

Led Soft Module
The LED soft module series is suitable for artistic forms such as
cylindrical screens, spiral screen, wave screen,ribbon screen .
Detail
- Stronger assembly wiring ensures more stable transmission.
Minimum bending angle: 135 degrees
18 magnets are matched with the single board, and each magnet has a
magnetic content Up to 2000GS, solving the problem of
ordinary soft modules The problem of debonding and warping
Specification
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) | 320*160*7.5MM | 320*160*7.5MM | 320*160*7.5MM | 240*120*7.5MM | 320*160*7.5MM | 256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard | SMD1515 | SMD1515 | SMD 2020 | SMD 2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan | 1/20Scan | 1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) | 288906 Dot/m² | 250000 Dot/m² | 160000Dot/m² | 111111Dot/m² | 105625 Dot/m² | 62500Dot/m² |
Refresh Rate(Hz) | 7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
Brightness(CD/ m²) | ＞800 | >700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
Protection Level | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
Grey Level | 14-16 bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
Working Temperature | -20～50℃ | -20～50℃ | -20~50°C | -20~50°C | -20~50°C | -20~50°C |
Working Humidity | 10%～65%RH | 10%～65%RH | 10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
Life Span | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
Working Voltage | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Company introduction
Charming Co., Ltd. has consistently focused on technical innovation
and providing global entertainment lighting and LED solutions. In
2003, it introduced the world's first LED display for entertainment
applications, continuing to set trends in this field. It has become
the top brand for customer satisfaction in China's entertainment
lighting LED market. The company holds nearly 100 patents and has
received ISO9001, CE, CCC, CB, ROHS, and SASO certifications.
Adhering to its corporate philosophy of 'Charming Achieves Beauty,'
it operates an international-standard fully automated LED display
production line in a 10,000-square-meter factory. For over 22
years, it has supplied high-quality products and services to
customers in more than 150 countries and regions.
What we offer to customer?
1.How can I find the price?
We typically provide quotes within 24 hours of receiving your
inquiry. If you need a quote urgently, please email us or contact
us through alternative means.
2. Can I purchase samples by placing orders?
Please feel free to contact us.
3.What is your typical delivery timeframe?
The shipping time depends on the order quantity and the season.
Typically, orders of smaller quantities are shipped within 7-15
days, while larger quantities may take approximately 30 days.
4.What are your payment terms?
T/T, PayPal, Alipay, or other payment methods are acceptable. This
can be negotiated.
Certification and Documents
1.We offer the operation manual, software, test report, and other
related materials.
2. We offer a variety of certifications, including CE and UL.
Warranty
We provide a two-year warranty on all our displays, modules, and
parts, covering free replacement or repair of any defective items.
Additionally, we offer lifetime maintenance, charging only for raw
materials. We also provide free technology training on LED screen
operation and maintenance at our factory, along with an operation
manual, software, test report, and CAD drawings for assembly.
Expert advice is available as well.
