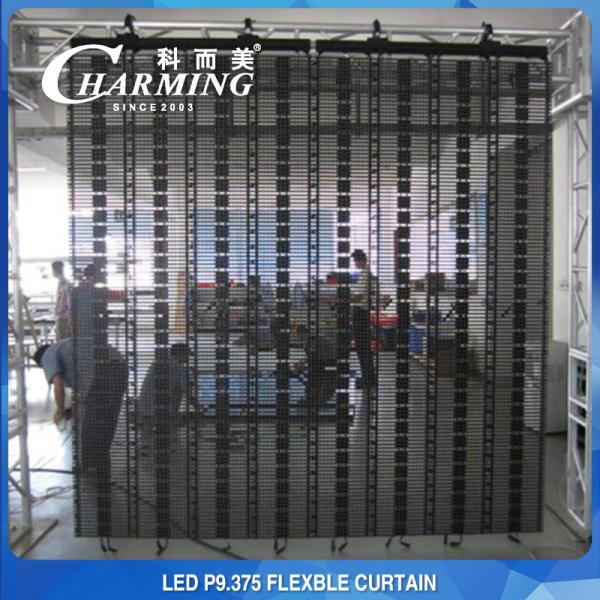

Outdoor Large LED Flexible Display P9.375 RGB Led Curtain Screen
Product Details
1. PWM High Quality
High refresh rate 3000Hz and high grey control IC. Grey level
65536. Easy maintenance and low power . High transparence and
protection level IP65. UV resisitant PC material , meet the
temperature rate for using -40℃-60℃.
2. Easy Installation And Fast Connection
Each column is fixed with two 4 wire ropes for outdoor installtion
, simplified the steel frame structures a lot , good heat radiation
and ventilation without fan and air condition.
3. Ultra Slim And Light Cabinet
The thickest part is just 17mm , the thinnrdt part is only 7mm.
Left and right connector ensure separation distance.Ultralight ,
the weight of single unit is 3/2.5KG.
4.16-Bit Higher Grey Level
Grey level is the decisive factor for displaying the colors . The
higher the grey level , the richer the displayed colors and the
more delicate the picture.
Cabinet Detail
Die-casting Aluminum cabinet. Strong regidity, no deformation, more
accurate splicing , ergonomic structural design easy installation
by one person.
Product Parameters
Type Number | P9.375 |
|---|
Dimension(MM) | 300*900MM |
|---|
Unit Module Max Power(W) | 135W/M² |
|---|
Cabinet Weight(KG) | 3KG |
|---|
Refresh Rate(Hz) | 3840Hz |
|---|
Pixel Pitch(MM) | 9.375MM |
|---|
Led Standard | SMD2727 |
|---|
Pixel Density(Dot/M²) | 11377 Dot/M² |
|---|
Brightness(CD/M²) | ≥1500CD/M² |
|---|
Viewing Angle | 110° |
|---|
IP Rate | IP65 |
|---|
Control Case | L4*H2 |
|---|
Control Pixel | L128*H192MM |
|---|
Grey Level | 16 bit |
|---|
Working Temperature | 20~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
Installation Details
1.Splicing the box into the required size and shape, aligning the
hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the
power cable and the signal cable into the corresponding places of
the box.
3.Connect the main signal cable and the main power cable to the
computer and the controller, and use it successfully after
debugging the screen.
Screen Usage
Curtain screen is suitable for large indoor performance stage
rental, or outdoor large advertising screen, outdoor large
performance. Adjustable screens allow for greater variety in screen
shapes and uses.
Package Details
We have carton case, wooden case, flight case to choose
from.Different products will be configured with different
packaging, in order to better protect the screen.
Production process
Our brand has a history of 19 years, a complete production system
and production line. With its own factory, it can realize
mechanical automation production and reduce manual errors. Truly
achieve high quality and low price, and provide customers with the
best products at the lowest price.
Shipping Details
Provide multiple modes of transportation such as sea, land, air and
so on. We have a long-term cooperative international logistics
company, and our products can be sold all over the world. So far
our products have been sold to more than 150 countries and regions
around the world.
