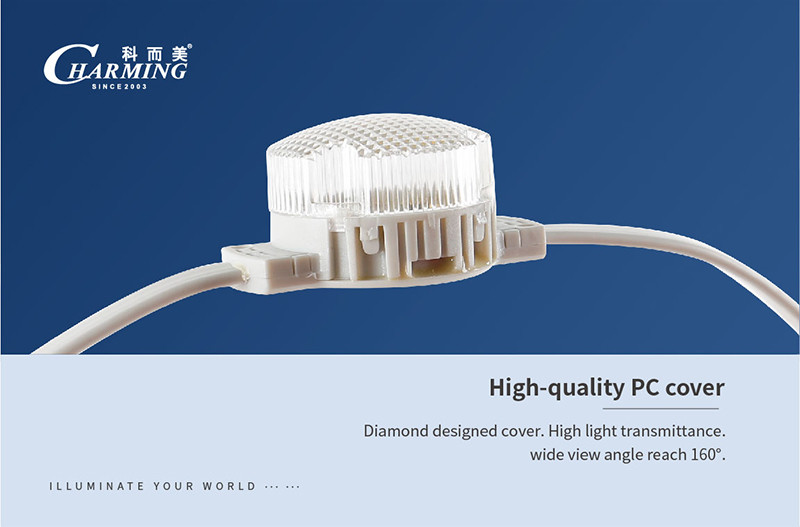

Full Color Rgb 40D Outdoor Led Pixel Light PC Cover Break Point
Product Description
1. Protection grade IP68 can be suitable for outdoor application.
2.The distance between points can be customized.
3.It has breakpoint working function and does not effect the
operation of each point.
4. Organic PU hard adhesive sealed, high thermal conductivity and
fully sealed waterproof design.
5. Waterproof male and female plug to ensure good connection.
Multi-installation Method
1. Install and secure using screws.
2.Installed by aluminum grooves.
3.Installed by bracket.
4. Steel wire installation
Technical Specifications
Type number | 40D |
|---|
Pixel pitch | 170mm, 30pcs/s |
|---|
| Led quantity | 6 PCS |
|---|
Max Power(W) | 1.5W |
|---|
Input voltage | DC 24V |
|---|
Dimension(mm) | φ40*27.3mm |
|---|
LED dimension | SMD 3535 |
|---|
Display grayscale | 4096 |
|---|
Viewing angle | ＞180° |
|---|
Connector | SPI |
|---|
IP rate | IP68 |
|---|
Material | PC |
|---|
Working Temperature | -20~60℃ |
|---|
Life Span | ≥50000 Hours |
|---|
