Indoor P3.91 Transparent LED Video Wall Led Advertising Grass Wall
Product Details

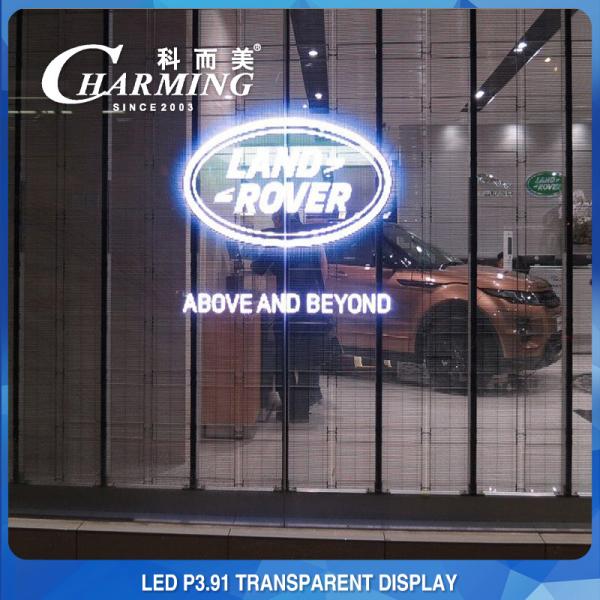

Featured with high transparency, Transparent LED Screen can be used
at any place that has glass walls. Highly usable at places like
bank, shopping mall, theater, commercial stage, chain store, hotel,
public building and landmark building etc.
1. Easy Installation And Maintenance
Standardized cast aluminum design , suitable for fixed instalation
and hanging installation , Light weight , thin , transparent and
easy to maintain , it can meet the high -end needs of users.
2. Space Saving, Ultra-lightweight
The Transparent LED Screen for Shopping Mall is only 75mm thick
which makes it ultra-lightweight and space saving. Can be installed
at any area without requiring much space. The light weight of
5kg/panel LED screen is easy to carry, transport and install -
saving good amount of money on your labor costs
3. High Transparent Effect
It features transparent effect up to 80% keeping the perspective
function of glass. The higher transparency effect allows you to see
LED light on the glass without any effect to surround of glass
wall.
Cabinet Detail
Die-casting Aluminum cabinet. Strong regidity, no deformation, more
accurate splicing , ergonomic structural design easy installation
by one person.
Product Parameters
Type Number | H391S |
|---|
Dimension(MM) | 1000*500*73MM |
|---|
Max Power(W) | 230W |
|---|
Cabinet Weight(KG) | 7KG |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
Pixel Pitch(MM) | 3.91MM |
|---|
Led Standard | SMD2020 |
|---|
Pixel Density(Dot/M²) | 32768 Dot/M² |
|---|
Brightness(CD/M²) | ≥1000CD/M² |
|---|
Viewing Angle | 140° |
|---|
IP Rate | Indoor |
|---|
Cabinet Material | Aluminum Alloy |
|---|
Maintenance | Back Service |
|---|
Grey Level | 16 bit |
|---|
Working Temperature | 20~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
Installation Details
1.Splicing the box into the required size and shape, aligning the
hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the
power cable and the signal cable into the corresponding places of
the box.
3.Connect the main signal cable and the main power cable to the
computer and the controller, and use it successfully after
debugging the screen.
Screen Usage
Highly usable at places like bank, shopping mall, theater,
commercial stage, chain store, hotel, public building and landmark
building etc.
Light and thin appearance can be faster to install, easy to maintain and meet high-end needs.
Advanced materials can increase the service life.High refresh 3840HZ can show smooth video effect.
The quality is clear and the colors are bright and distinct.
Package Details
We have carton case, wooden case, flight case to choose
from.Different products will be configured with different
packaging, in order to better protect the screen.
Production process
Our brand has a history of 19 years, a complete production system
and production line. With its own factory, it can realize
mechanical automation production and reduce manual errors. Truly
achieve high quality and low price, and provide customers with the
best products at the lowest price.
Shipping Details
Provide multiple modes of transportation such as sea, land, air and
so on. We have a long-term cooperative international logistics
company, and our products can be sold all over the world. So far
our products have been sold to more than 150 countries and regions
around the world.
