Outdoor Led Video Wall P3.91-P7.81 Transparent Screen Easy
Maintenance
Product Details
1. High Transparency
The screen has a light transmittance of more than 55%, good light
transmittance and air permeability, without affecting the light and
line of sight.
2. GCB Craft
Seal the surface of the module to achieve waterproof and
anti-collision, and protect the edge LED from falling.
3. Easy Installation and Maintenance
Thin body with quick lock for easy installation.
4. Protection Level IP65 Waterproof Performance
IP65 protection level can be waterproof and can be used outdoor
site.
5. Die-Cast Aluminum One-Piece Molding
High end first-class aluminum alloy material, strong rigidity, high
density and more accurate splicing, and it will make you have a
good use experience.
Application Occasion

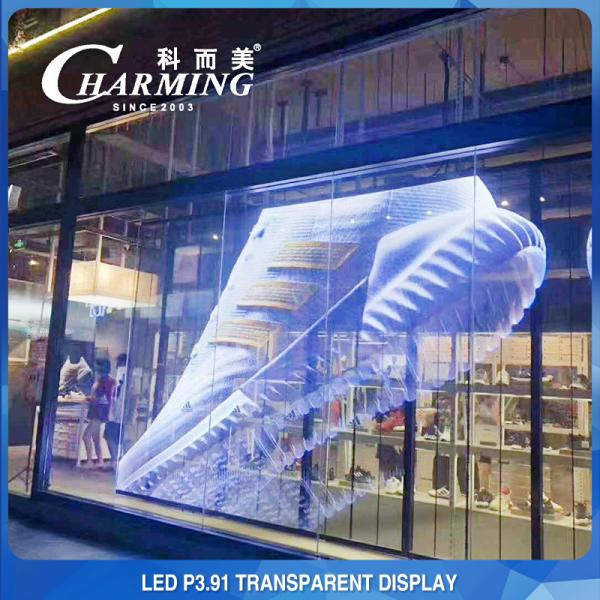

LED transparent screen is suitable for shipping malls, exhibitions,
theaters, office buildings and other places.Its high transparency can
show 3D flexible effect. There is optional curved 90 angle
function. The high-brightness waterproof LED lamp module is used for
outdoor use while ensuring the quality of the image while providing
waterproof performance.
Product Size and Specifications
Type Number | H391-S |
|---|
Dimension(MM) | 1000x500x76MM |
|---|
Max Power(W) | 230W |
|---|
Cabinet Weight(KG) | 5.5KG |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
Pixel Pitch(MM) | X:3.91mm/Hl:7.8mm |
|---|
Led Standard | SMD2020 |
|---|
Brightness(CD/M²) | ≥5000CD/M² |
|---|
Viewing Angle | 140° |
|---|
IP Rate | IP65 |
|---|
Grey Level | 16 bit |
|---|
Working Temperature | -20~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
