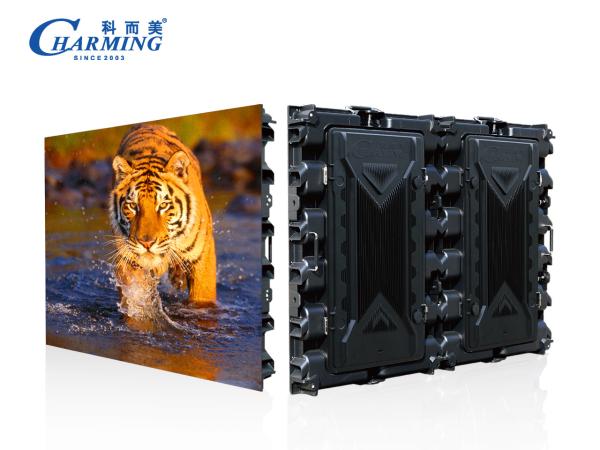

Full color big screen P4 P5 P8 Advertising LED Video Wall Screen
for building
Product Description
1. Non-air-conditioned outdoor applications.
2. Support customization before maintenance.
3. Left and right connection, waterproof pouring into the structure
4. PCB board three-proof paint process, waterproof, moisture-proof,
anti-static.
5. High brightness more than 5000CD each sqm, you can see the video
screen clearly even in the sun.
Technical Specifications
Type Number | M4 | M5 | M8 |
|---|
Pixel Pitch | 4.0mm | 5.0mm | 8.0mm |
|---|
Pixel Density | 62500 Dot/㎡ | 40000 Dot/㎡ | 15625 Dot/㎡ |
|---|
Scan Type | 1/10 Scan | 1/8 Scan | 1/5 Scan |
|---|
Brightness | ≥5000CD/㎡ | ≥6000CD/㎡ | ≥5500CD/㎡ |
|---|
Best Viewing Distance | ≥4M | ≥5M | ≥8M |
|---|
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
|---|
| Color | RGB |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
| Cabinet Size | 1280x960mm |
|---|
Module Size | 320x160mm |
|---|
Cabinet Max Power | 1200W |
|---|
Viewing Angle | 130° |
|---|
IP Rate | IP65 |
|---|
| Life Span | 100,000 h |
|---|
Cabinet Material | Magnesium/Aluminum Alloy |
|---|
Maintenance | Front/Back Service |
|---|
Working Temperature | -30~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60HZ |
|---|
| Weight | 38.8kg |
|---|
Detail Showing
Competitive advantages:
1. 20 years of experience in manufacturing LED screens of different
application
2. Implementation of the project on the screen of any complexity
3. faster delivery products from China
4. Technical Support (from design to debug screen display)
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
