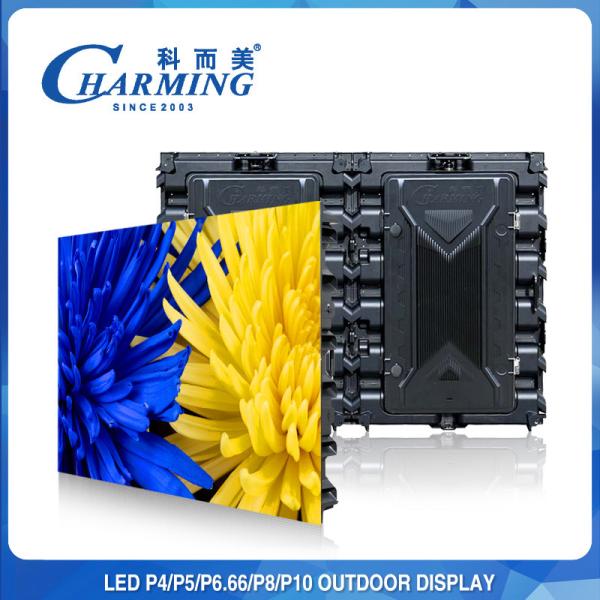

6000CD Outdoor Led Advertising P4, P5, P8 Led Display Video Wall
Screen
Product Description
1. Stainless steel quick lock structure
2. Front/Back Access is available
3. High brightness ≥6000CD
4. Cable hidden protection design
5. Strong waterproof structure of IP65
6. Outdoor application program without air conditioning
7. The horizontal and vertical viewing angles up to 140 degrees.
Technical Specifications
Type Number | M4 | M5 | M8 |
|---|
Pixel Pitch | 4.0mm | 5.0mm | 8.0mm |
|---|
Pixel Density | 62500 Dot/㎡ | 40000 Dot/㎡ | 15625 Dot/㎡ |
|---|
Scan Type | 1/10 Scan | 1/8 Scan | 1/5 Scan |
|---|
Brightness | ≥5000CD/㎡ | ≥6000CD/㎡ | ≥5500CD/㎡ |
|---|
Best Viewing Distance | ≥4M | ≥5M | ≥8M |
|---|
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
|---|
| Color | RGB |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
| Cabinet Size | 1280x960mm |
|---|
Module Size | 320x160mm |
|---|
Cabinet Max Power | 1200W |
|---|
Viewing Angle | 130° |
|---|
IP Rate | IP65 |
|---|
| Life Span | 100,000 h |
|---|
Cabinet Material | Magnesium/Aluminum Alloy |
|---|
Maintenance | Front/Back Service |
|---|
Working Temperature | -30~60℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60HZ |
|---|
| Weight | 38.8kg |
|---|
Detail Showing
Competitive advantages:
1. 20 years of experience in manufacturing LED screens of different
application
2. Implementation of the project on the screen of any complexity
3. faster delivery products from China
4. Technical Support (from design to debug screen display)
APPLICATION WITH STAGE, EVENT, CONCERT, EXHIBITION, CHURCH,
RALLIES, AWARD SHOWS...
About US
Charming Co., ltd has always been committed to technical innovation
and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field
of the entertainmnet applications, and contiunes to lead the trend
of LED's in this field. It has developed into the first brand of
customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC,
CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty
", we have an international standard full-automatic led display
production line with a factory area of more than 10,000 sqm. We
have provided quality products and services to customers in more
than 150 countries and regions for 17 years.
What we offer to customer?
1.we can provide payment bank,;
2.we can provide long time warranty 2-3years;
3.we can provide 24hours service;
4.we can provide full solutions for every project ;
5.we can provide full products .
