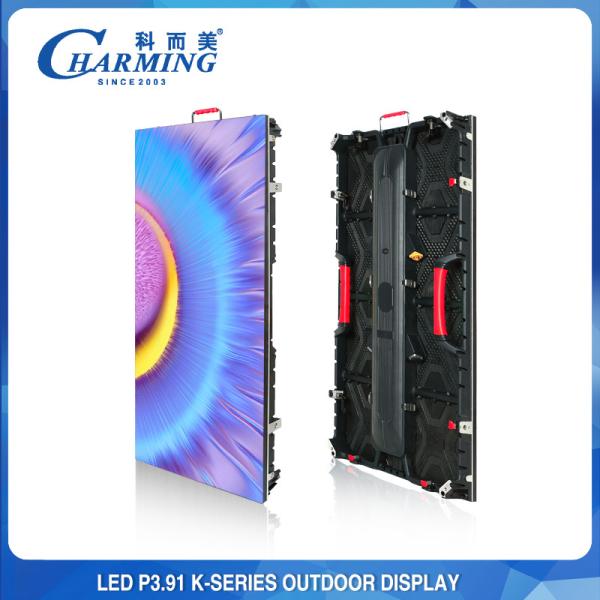

P3.91 Outdoor Led Display Video Wall For Rental Event Wedding Party
Product Detail Parts
1. Light Weight and Thin Thickness
K series P3.91 is ultra thin, thickness only 86 mm. And its weight
is light, 500*500mm cabinet only 7.2 kg, 500*1000mm cabinet only
12.5 kg.
2.Cabinet Main Material
The main material of cabinet is die casting aluminum. It is strong
rigidity, not easy to be deformation, more accurate splicing.
3. Precise Positioning Of Installation
The positioning pin can meet seamless splicing between the upper
and lower,left and right positions of the quick docking cabinet to
improve the installation efficiency.
4.Protection Corner
It can effectively protect the led lamp of the corner led modules
from colliding and falling of during transportation or repeated
disassembly when for rental.
5.Led Module Protection
it can keep a gap between the bottom LED modules and ground to
avoid collided when transporting.
Alternative Function
1. Anti-collision Corner
It can effectively prevent modules and lamp beads from being
knocked or impacted during transportation and carrying.
2. Curved Lock Design
The cabinet with curved lock can be bent by plus or minus 15
degrees, and can be used as curved screen and circular screen.
3. Module Handle
It is easier to remove the module when you want to replace the
module and maintain the cabinet.
Important Parameters
Type Number | RK391W-A / BH | RK391WX-A/BH |
|---|
Dimension(MM) | 500x500x86MM | 500x1000x86MM |
|---|
Max Power(W) | 200W | 400W |
|---|
Cabinet Weight(KG) | 8KG | 14KG |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
Pixel Pitch(MM) | 3.91MM |
|---|
Led Standard | SMD1921 |
|---|
Pixel Density(Dot/M²) | 65536 Dot/M² |
|---|
Brightness(CD/M²) | ≥4500CD/M² |
|---|
Viewing Angle | 140° |
|---|
IP Rate | IP65 |
|---|
Cabinet Material | Aluminum Alloy |
|---|
Maintenance | Back Service |
|---|
Grey Level | 14-16 bit |
|---|
Working Temperature | 20~40℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
