Product Description

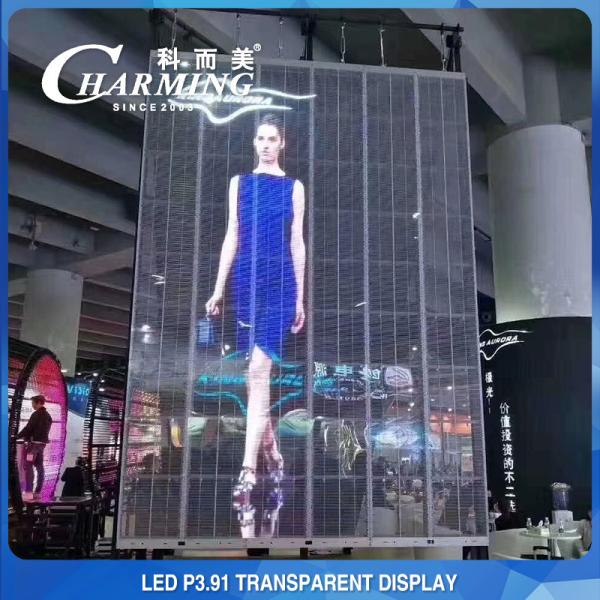

Case Display
Details Images
Product Features:

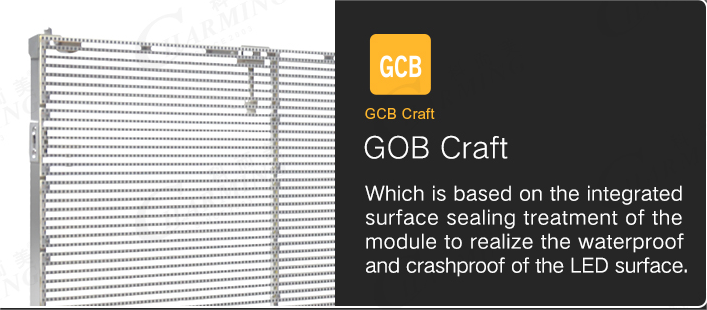

1.GCB Craft & High Transparency

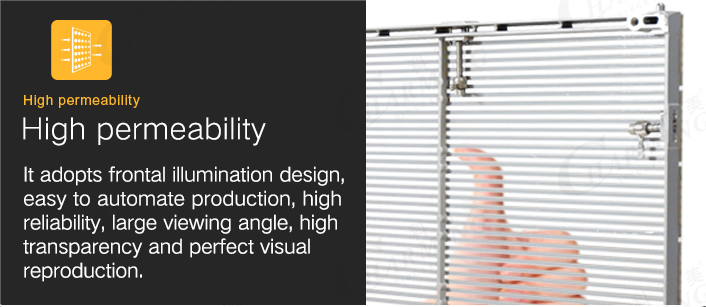

2.High permeability

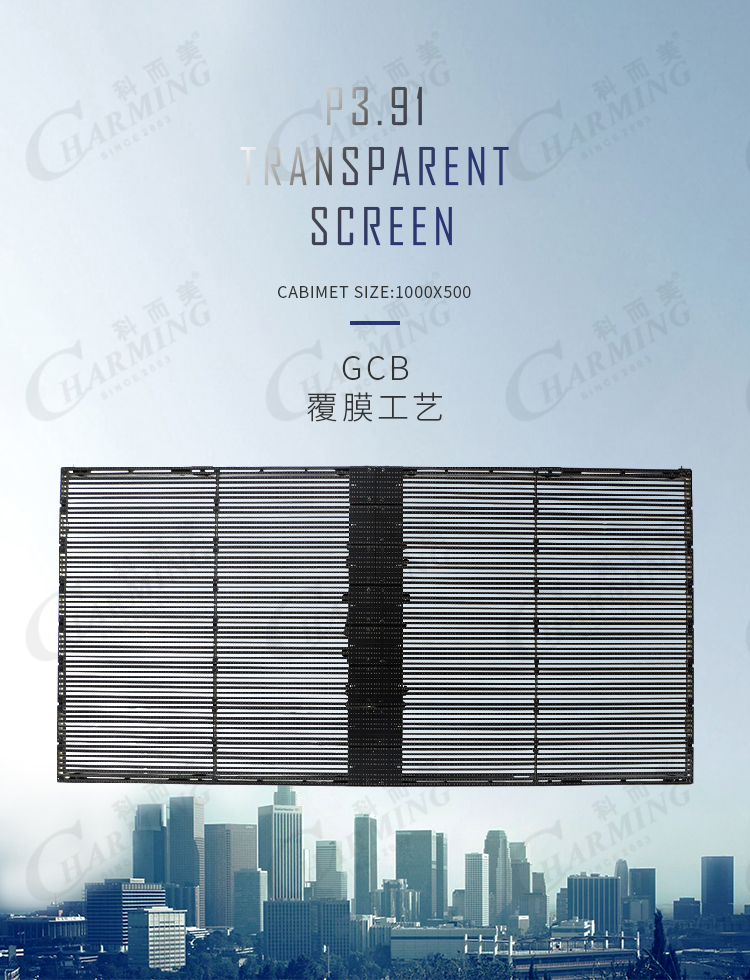

3.1000x500x76mm RGB HD Full color Screen & cost-effective

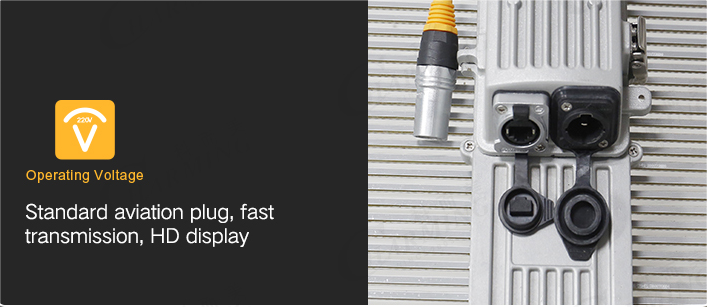

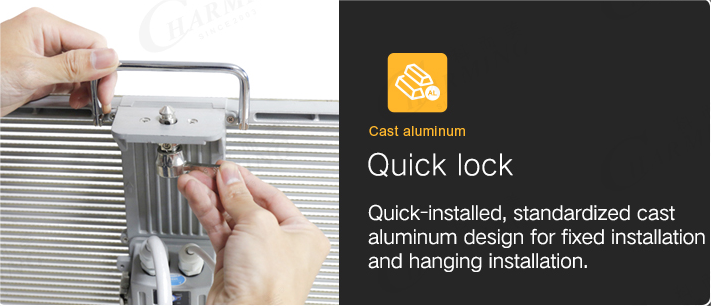

4. Quick Lock Installtion & Fast Transmission
Specification
| Type Number | H391A |
| Cabinet size(mm) | 1000X500mm |
| Cabinet Weight(kg) | ≤5.5 |
| Pixel Pitch(MM) | Horizontal 3.9 / Vertical 7.8 |
| LED Standard | SMD2020 |
| Scan Mode | 1/16Scan |
| Pixel Density(dot/m) | 256X64 (Can rotate 90 to display) |
| Physical pixel (dot/m') | 32768Dot/sqm |
| Screen Resolution | 256X128(Seting)/256X64(real) |
| Max.Power(W) | 430W/sqm |
| Brightness(CD/㎡) | ≥800CD/sqm |
| Grey level | 10-16bit |
| Permeability | 55% |
| Protection Level | IP65 |
| Input voltage | AC100-240V50/60Hz/220V+-10V |
| Installing Method | Fixed installation/hositing |
| Life Span | ≥100,000 H |

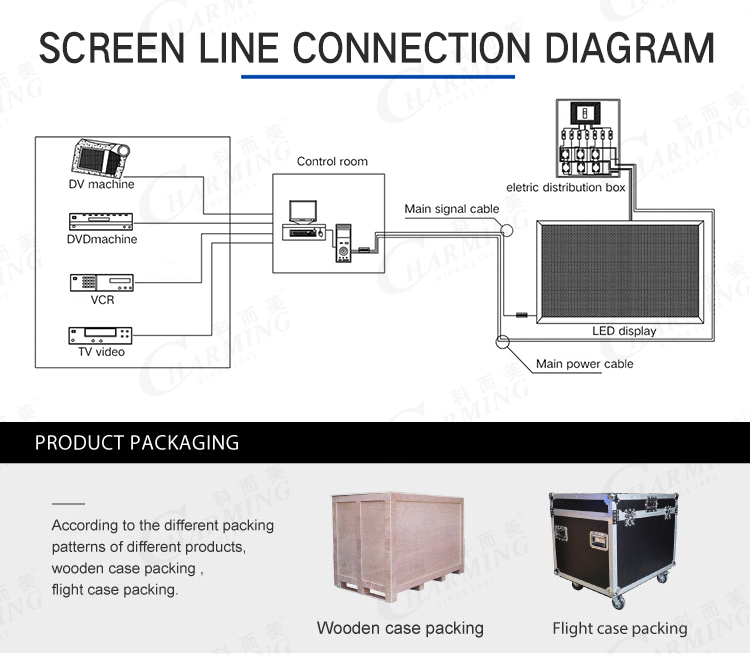

Packing & Delivery

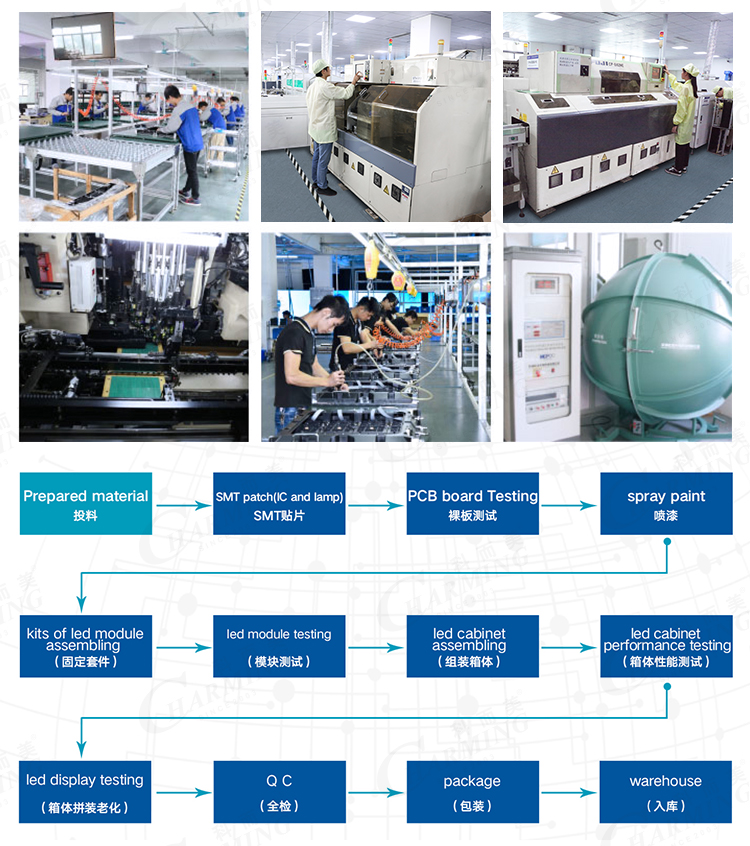

Company Profile
