Multifunctional P2.6 Outdoor Rental Display, For Concerts
Exhibition Trade Fair
Product Description
1. Truss Quick Connetion Hole
It supports the quick connection between the leased truss and the
cabinet, as well as the suspension and fixed installation.
2.Anti-collision Corner
It can effectively protect the corner led module and prevent the
led lamp from collision and falling off during transportation or
installation.
3. Curved Lock Design
The arc lock supports internal and external bending to form a
design of various shapes.

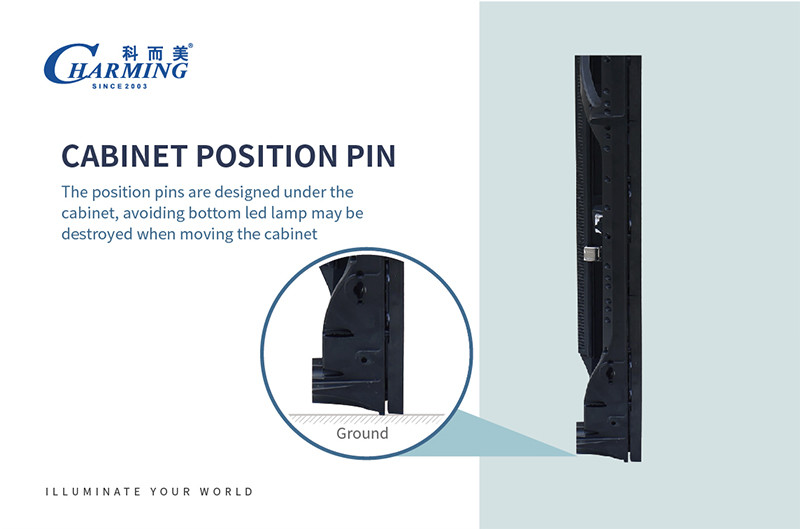

4. Led Module Protection
The clearance between the bottom led module and the ground shall be
kept to avoid collision during transportation.
5.Ultra-wide Viewing Angle
The 140 ° ultra wide viewing angle can show the same wonderful
effect from different angles.
Details Showing
As a manufacturer with a history of 20 years, we have advanced
technology and mature process to constantly improve the
cabinet function.
Important Parameters
Type Number | RK26W-A / BH | RK26WX-A/BH |
|---|
Dimension(MM) | 500x500x86MM | 500x1000x86MM |
|---|
Max Power(W) | 200W | 400W |
|---|
Cabinet Weight(KG) | 8KG | 12.8KG |
|---|
Refresh Rate(Hz) | 3840Hz / 1920Hz |
|---|
Pixel Pitch(MM) | 2.6MM |
|---|
Led Standard | SMD1921 |
|---|
Pixel Density(Dot/M²) | 65536 Dot/M² |
|---|
Brightness(CD/M²) | ≥4500CD/M² |
|---|
Viewing Angle | 140° |
|---|
IP Rate | IP65 |
|---|
Cabinet Material | Aluminum Alloy |
|---|
Maintenance | Back Service |
|---|
Grey Level | 14-16 bit |
|---|
Working Temperature | 20~40℃ |
|---|
Working Humidity | 10%~90%RH |
|---|
Life Span | ≥50000 Hours |
|---|
Working Voltage | AC110V/220V, 50/60Hz |
|---|
Screen Usage
Outdoor rental led screen is suitable for outdoor events,
exhibitions, concerts and wedding function and birthday party
and so on. Light and thin appearance can be faster to install, easy to maintain and meet high-end needs.
Advanced materials
can increase the service life.High refresh 3840HZ can show smooth video effect. The quality is clear and the colors are bright and
distinct.
