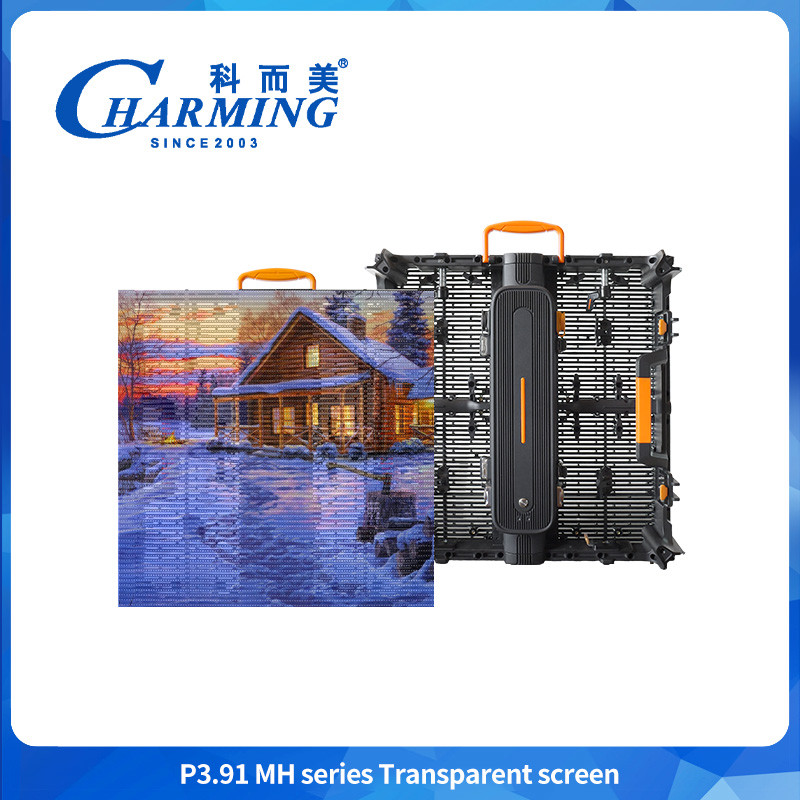

LED Outdoor Transparent Screen Video Wall Waterproof Wind
Resistance High Brightness
Product feature:
1):Magnesium alloy process Cabinet.
2):ultrathin
3):front maintenance
4):Windproof andventilation design
product introduce:
1)Strong rigidity, not easily deformedlightweight;
2)Thickness only 88.5mm;
3)Windproof design reduces wind resistanceand solves the problem of
screens being blownover by wind The module adopts a hollow
design,allowing air to flow back and forth,Helps solvethe heat
dissipation pro blem of the box.
4)Module magnetic suction frontmaintenance,Newlock buckle forgreater
safety.
Product parameter
| Dimension(MM) | 500*500*85mm/500*1000*85mm |
| Max.Power(w) | 200W/400W |
| Cabinet Weight(KG) | 6.2KG/11.2KG |
| Brightness(CD/m²) | ≥5000 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | 1920Hz/3840Hz |
| Pixel Pitch(MM) | 3.91-7.8125MM |
| Scan Mode | 1/8Scan |
| Pixel Density(Dot/㎡) | 32768 Dot/m² |
| Cabinet Material | Magnesium Alloy |
| Maintenance Method | Back Maintenance |
| Grey Level | 16 Bit |
| Working Temperature | -20~60℃ |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working voltage | AC 110W/220V,50V60HZ |
Charming Co., ltd has always been committed to technical innovation
and service of global entertainmet lighting & LED.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE,
CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty
", we have an international standard full-automatic led display
production line with a factory area of more than 10,000 sqm. We
have provided quality products and services to customers in more
than 150 countries and regions for 20 years.
In 2003, the world's first led display was brought into the field
of the entertainmnet applications, and contiunes to lead the trend
of LED's in this field. It has developed into the first brand of
customer satisfaction in China's entertainment lighting Led.
We specializes in the production of LED display products such as
indoor and outdoor LED video walls, transparent LED video walls,
and LED strip lights. They also offer rental services for LED
displays and have a focus on high-quality products with waterproof
and anti-collision
What we offer to customer
1. What is the warranty ?
1 years Warranty.
2. How much is the freight ?
The shipping cost is determined by the size of the screen, and the
project information is informed by the inquiry.
3. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will
provide suitable solutions.
4.What is your payment term?
alibaba,T/T, Paypal, or other is ok .This is negotiable.
5. Can I customize it ?
Of course. All the goods can be customized, we have a professional
product development team, welcome to customize.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest
viewing distance, the smaller the value, the clearer!
7. Is it OK to print my logo on the products?
Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system
and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
