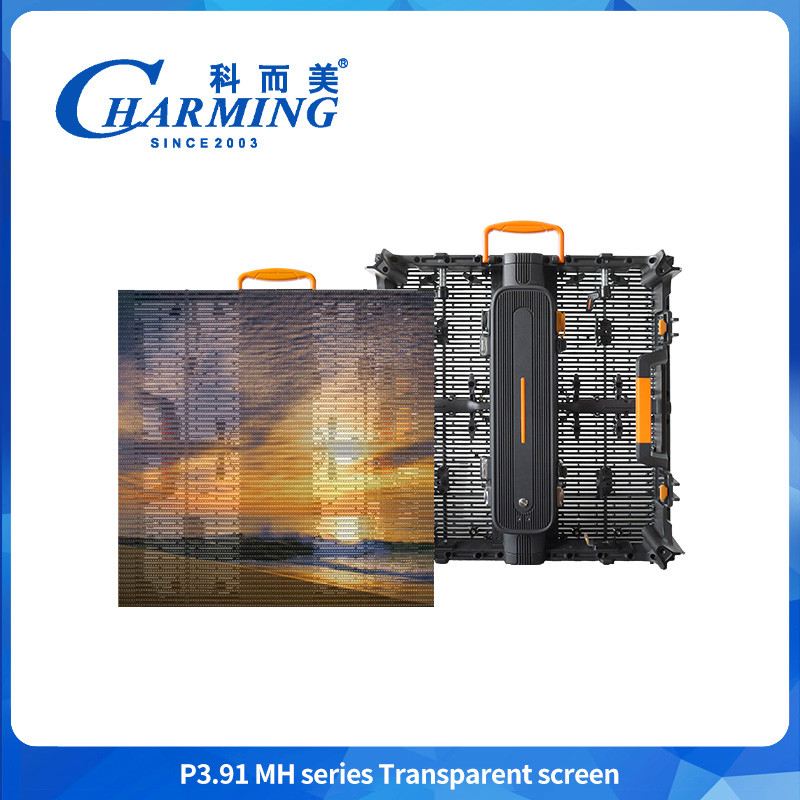

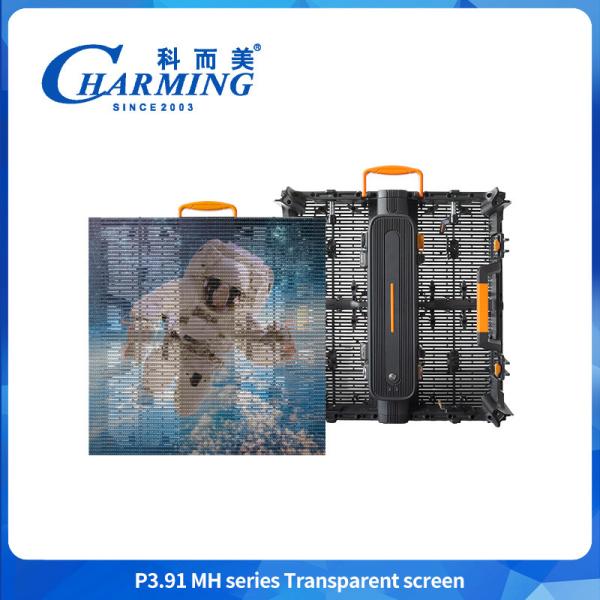

Outdoor Indoor Glass Transparent LED Film Display Transparent
Panels Led Strip Display Screen
Product feature:
1):The Cabinet material are made by megnisum alloy: strond rigid
and stable;
2):slim design; very light weight:only6.2KG;
3):Ultra High brightness: ≥5000CD/㎡;
4):IP65 Waterproof and wind resistance;
product introduce:
1)Module magnetic suction front maintenance.New lock buckle
forgreater safety;
2)Adopting high brightness waterproof LED light module,with a
brightness of more than 5000CD/㎡.
3)The cabinet is made of aviation magnesium alloy material, which has
strong rigidity Lightweight and has excellent hysteresis and shock
absorption performance.
4)Ensure image and video effect while also considering waterproofing
performance.Can meet outdoorrental needs.The silicone waterproof
ring on thedoor panel provides better waterproofeffect,Longer
service life.
Product parameter
| Dimension(MM) | 500*500*85mm/500*1000*85mm |
| Max.Power(w) | 200W/400W |
| Cabinet Weight(KG) | 6.2KG/11.2KG |
| Brightness(CD/m²) | ≥5000 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | 1920Hz/3840Hz |
| Pixel Pitch(MM) | 3.91-7.8125MM |
| Scan Mode | 1/8Scan |
| Pixel Density(Dot/㎡) | 32768 Dot/m² |
| Cabinet Material | Magnesium Alloy |
| Maintenance Method | Back Maintenance |
| Grey Level | 16 Bit |
| Working Temperature | -20~60℃ |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working voltage | AC 110W/220V,50V60HZ |
Charming Co., ltd has always been committed to technical innovation
and service of global entertainmet lighting & LED.
In 2003, the world's first led screen was brought into the field of
the entertainmnet applications, and contiunes to lead the trend of
LED's in this field. It has developed into the first brand of
customer satisfaction in China's entertainment lighting LED.
It has obtained nearly 100 patents and obtained ISO9001, CCC,CE,
CB,, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty
", we have an international standard full-automatic led display
production line with a factory area of more than 10,000 SQM. We
have provided quality products and services to customers in more
than 150 countries and regions for 20 years.
What we offer to customer
1. How much is the freight ?
The shipping cost is up to the size of the screen, and the project
information is informed by the inquiry.
2. What is the warranty ?
1 years Warranty.
3. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will
provide suitable solutions.
4.What is your payment term?
alibaba,T/T, Paypal, or other is acceptable.This can be negotiable.
5. Can I have customization service ?
Of course. All the products can be customized. we have a
professional product development team.welcome to inquiry.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest
viewing distance, the smaller the value, the clearer!
7. Is it OK to print my logo on the products?
Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system
and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
